Fall Update - 10-20-18
  Its been a busy summer, and we haven't had a chance to update the layout pictures. If you follow our
    Facebook pages, you may have seen a few of these before. As of now, the mainline from
    Jersey City, through Easton to Wilkes-Barre is completed. There's just some wiring
    that needs to be done to finish the job.
Go back to GSC Home
Go back to GSC Layout Index

previous  Index page 1 2 3  next
IMG_4458 IMG_4459 IMG_4460 IMG_4460b

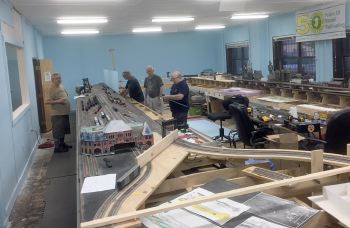

Beginning to work on the backdrop between Jersey City and Wilkes-Barre. In the back, you can see the first pieces being installed.
Martin, Jules, Lou and Steve do the prep work for the next piece of backdrop. The sections were pre-painted in the hall prior to installation
A few more sheets are up.
Steve and Mike put the last straight piece of backdrop up behind the Jersey City Terminal.
IMG_4461 IMG_4462 IMG_5506 IMG_5507
The 3/8” masonite is screwed up against the Jersey City plywood decking. Plastic guides are installed between each of the sheets to help keep them rigid.

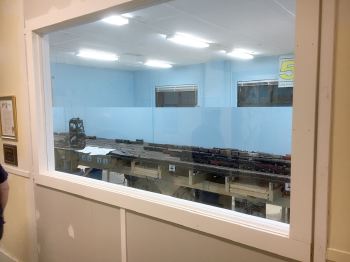

The view from the hallway through our window.

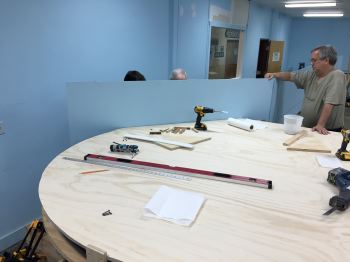

Now that the backdrop is up, we can work on the deck for Wilkes-Barre, PA.

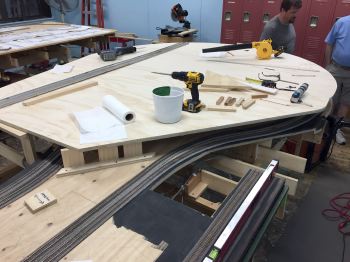

Here’s the only second level on the layout. The future home of the GSC roundhouse in Wilkes-Barre is over the Jersey City return loop. The Jersey City Terminal is just below the bottom of the picture.
IMG_5508 IMG_5510 IMG_5513 IMG_5516
Mike cuts away the last section of Jersey City decking to for where the water will come up to the Jersey City Terminal. The station usually sits in the light colored section right above him.
With the water section cut away, Mike and Martin start to install the last section of the backdrop. This section will go across the Jersey City side of the layout to hide theWilkes-Barre roundhouse.

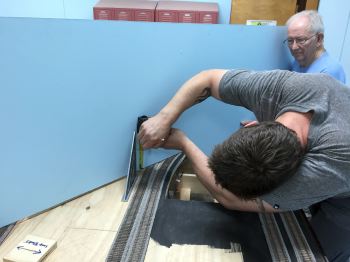

The last piece is being marked before installation.

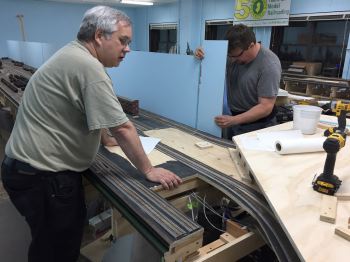

Mike marks out the hole where the Jersey City mainline will go under Wilkes-Barre while Lou steadies the backdrop.
IMG_5518 IMG_5519 IMG_5522 IMG_5524

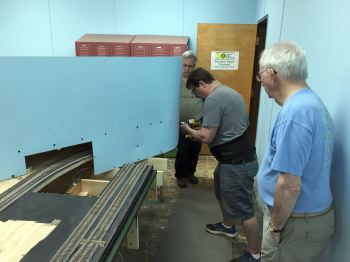

The notches for Jersey City Terminal and Elizabethport tracks have been cut as well as the water section behind the terminal. Time for the dry fitting to see if any adjustments need to be made.
Here’s the view from the Wilkes-Barre side. You can’t tell that Jersey City is on the other side. It also does a good job of concealing Lou and Mike.

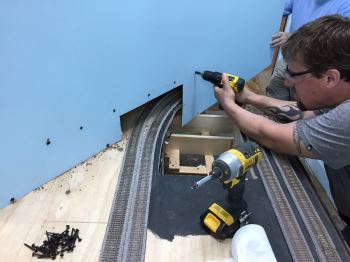

The backdrop is screwed to the Wilkes-Barre deck. All the screws will be covered with putty and painted to match the rest of the backdrop.
Finishing up around the corner.
